JDBC处理器StatementHandler

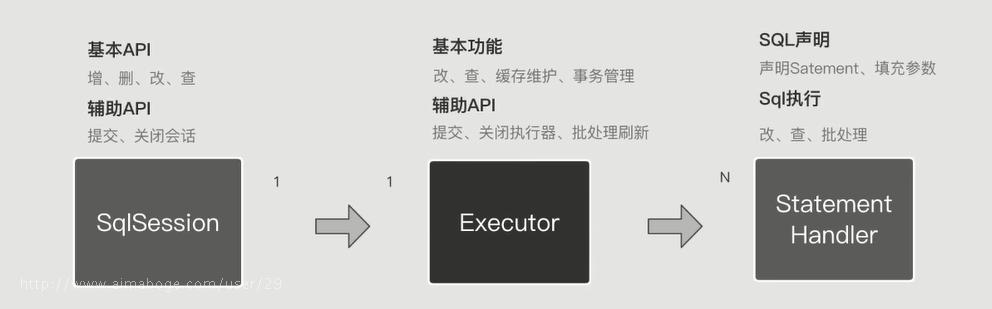

1、mybatis执行流程

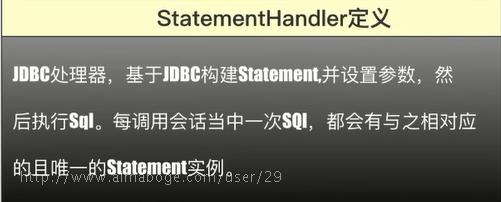

2、StatementHandler定义及结构

StatementHandler接口

/**
 *    Copyright 2009-2016 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor.statement;

import java.sql.Connection;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.List;

import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.parameter.ParameterHandler;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.session.ResultHandler;

/**
 * @author Clinton Begin
 */
public interface StatementHandler {

  // 创建Statement，基于java.sql
  Statement prepare(Connection connection, Integer transactionTimeout)
      throws SQLException;

  // 设置参数
  void parameterize(Statement statement)
      throws SQLException;
  // 执行批处理
  void batch(Statement statement)
      throws SQLException;
  // 执行修改
  int update(Statement statement)
      throws SQLException;
  // 执行查询
  <E> List<E> query(Statement statement, ResultHandler resultHandler)
      throws SQLException;
  // 查询游标
  <E> Cursor<E> queryCursor(Statement statement)
      throws SQLException;
  // 获取动态sql
  BoundSql getBoundSql();
  // 获取参数处理器
  ParameterHandler getParameterHandler();

}

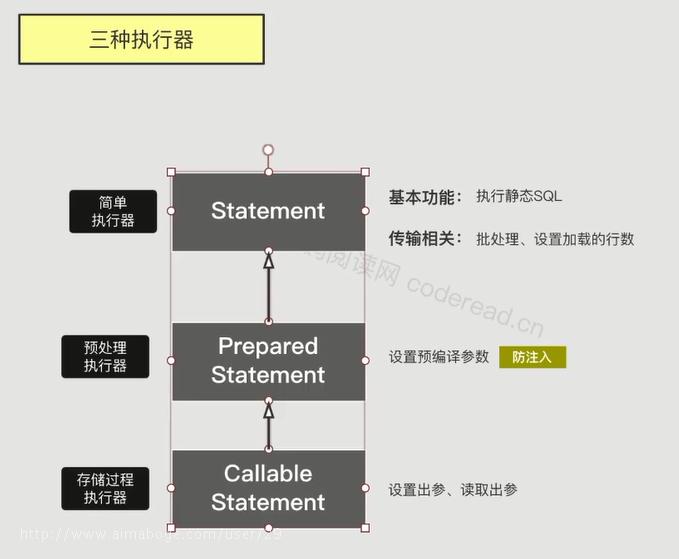

三种执行器介绍

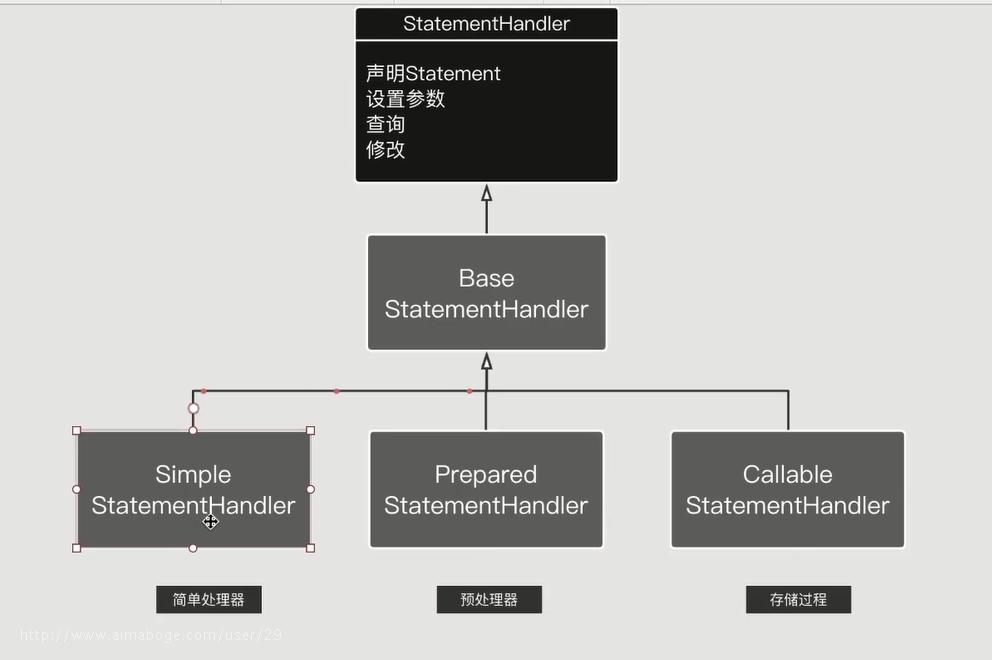

三种执行器结构

BaseStatementHandler

/**
 *    Copyright 2009-2016 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor.statement;

import java.sql.Connection;
import java.sql.SQLException;
import java.sql.Statement;

import org.apache.ibatis.executor.ErrorContext;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.executor.ExecutorException;
import org.apache.ibatis.executor.keygen.KeyGenerator;
import org.apache.ibatis.executor.parameter.ParameterHandler;
import org.apache.ibatis.executor.resultset.ResultSetHandler;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.reflection.factory.ObjectFactory;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.TypeHandlerRegistry;

/**
 * @author Clinton Begin
 */
public abstract class BaseStatementHandler implements StatementHandler {

    ......

  protected abstract Statement instantiateStatement(Connection connection) throws SQLException;

    ......

}

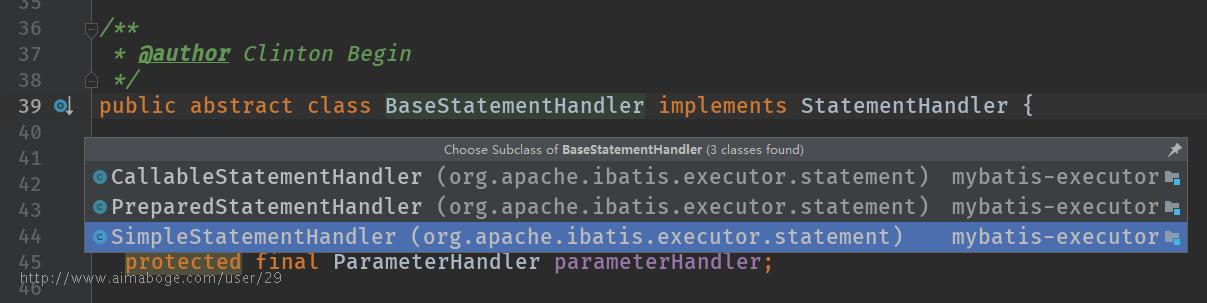

三种执行器继承该抽象类

SimpleStatementHandler

/**
 *    Copyright 2009-2018 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor.statement;

import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.List;

import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.executor.keygen.Jdbc3KeyGenerator;
import org.apache.ibatis.executor.keygen.KeyGenerator;
import org.apache.ibatis.executor.keygen.SelectKeyGenerator;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ResultSetType;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;

/**
 * @author Clinton Begin
 */
public class SimpleStatementHandler extends BaseStatementHandler {

  @Override
  protected Statement instantiateStatement(Connection connection) throws SQLException {
    if (mappedStatement.getResultSetType() == ResultSetType.DEFAULT) {
      return connection.createStatement();
    } else {
      return connection.createStatement(mappedStatement.getResultSetType().getValue(), ResultSet.CONCUR_READ_ONLY);
    }
  }



}

PreparedStatementHandler

/**
 *    Copyright 2009-2018 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor.statement;

import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.List;

import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.executor.keygen.Jdbc3KeyGenerator;
import org.apache.ibatis.executor.keygen.KeyGenerator;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ResultSetType;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;

/**
 * @author Clinton Begin
 */
public class PreparedStatementHandler extends BaseStatementHandler {

  @Override
  protected Statement instantiateStatement(Connection connection) throws SQLException {
    String sql = boundSql.getSql();
    if (mappedStatement.getKeyGenerator() instanceof Jdbc3KeyGenerator) {
      String[] keyColumnNames = mappedStatement.getKeyColumns();
      if (keyColumnNames == null) {
        return connection.prepareStatement(sql, PreparedStatement.RETURN_GENERATED_KEYS);
      } else {
        return connection.prepareStatement(sql, keyColumnNames);
      }
    } else if (mappedStatement.getResultSetType() == ResultSetType.DEFAULT) {
      return connection.prepareStatement(sql);
    } else {
      return connection.prepareStatement(sql, mappedStatement.getResultSetType().getValue(), ResultSet.CONCUR_READ_ONLY);
    }
  }



}

CallableStatementHandler

/**
 *    Copyright 2009-2018 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor.statement;

import java.sql.CallableStatement;
import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.List;

import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.executor.ExecutorException;
import org.apache.ibatis.executor.keygen.KeyGenerator;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mapping.ParameterMapping;
import org.apache.ibatis.mapping.ParameterMode;
import org.apache.ibatis.mapping.ResultSetType;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.JdbcType;

/**
 * @author Clinton Begin
 */
public class CallableStatementHandler extends BaseStatementHandler {

  @Override
  protected Statement instantiateStatement(Connection connection) throws SQLException {
    String sql = boundSql.getSql();
    if (mappedStatement.getResultSetType() == ResultSetType.DEFAULT) {
      return connection.prepareCall(sql);
    } else {
      return connection.prepareCall(sql, mappedStatement.getResultSetType().getValue(), ResultSet.CONCUR_READ_ONLY);
    }
  }


}

三种执行器创建不同的Statement来实现各自的功能

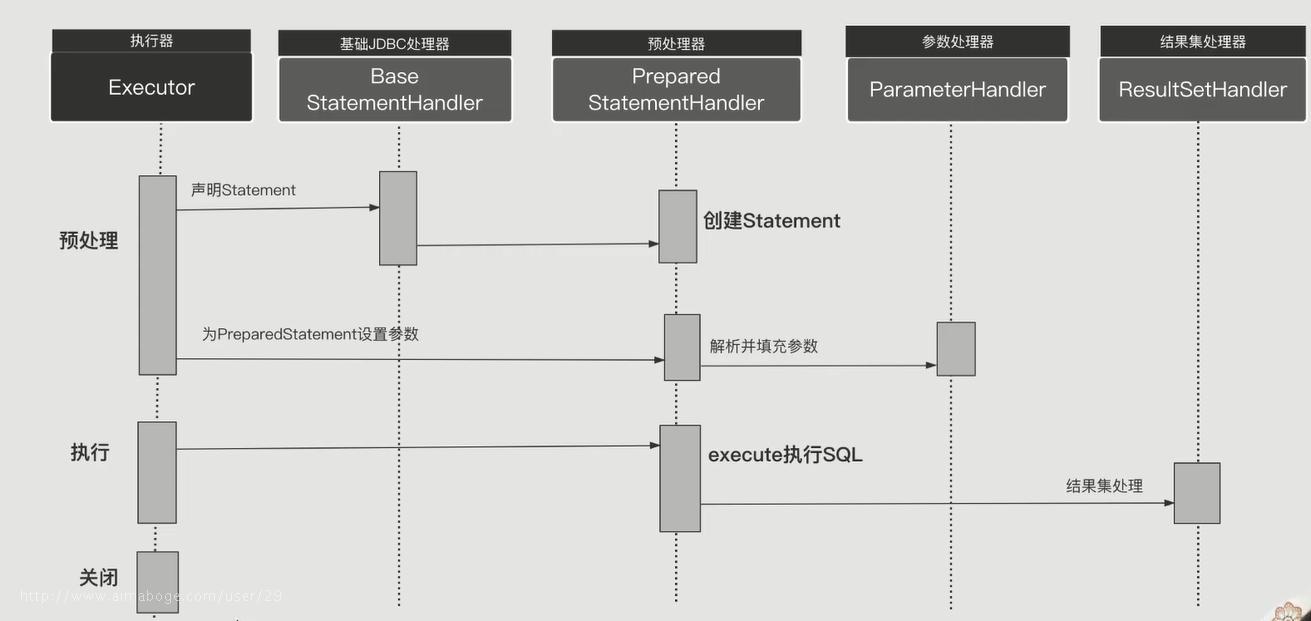

3、StatementHandler执行流程

以doQuery()方法为例介绍真正执行查询的过程

/**
 *    Copyright 2009-2019 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor;

import java.sql.Connection;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.Collections;
import java.util.List;

import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.statement.StatementHandler;
import org.apache.ibatis.logging.Log;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.transaction.Transaction;

/**
 * @author Clinton Begin
 */
public class SimpleExecutor extends BaseExecutor {

  public SimpleExecutor(Configuration configuration, Transaction transaction) {
    super(configuration, transaction);
  }

  @Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;
    try {
      Configuration configuration = ms.getConfiguration();
      StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
      stmt = prepareStatement(handler, ms.getStatementLog());
      return handler.query(stmt, resultHandler);
    } finally {
      closeStatement(stmt);
    }
  }



  private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    stmt = handler.prepare(connection, transaction.getTimeout());
    handler.parameterize(stmt);
    return stmt;
  }

}

实例化StatementHandler

public StatementHandler newStatementHandler(Executor executor, MappedStatement mappedStatement, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
  StatementHandler statementHandler = new RoutingStatementHandler(executor, mappedStatement, parameterObject, rowBounds, resultHandler, boundSql);
  statementHandler = (StatementHandler) interceptorChain.pluginAll(statementHandler);
  return statementHandler;
}

根据类型去实例化StatementHandler

public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {

  switch (ms.getStatementType()) {
    case STATEMENT:
      delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
      break;
    case PREPARED:
      delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
      break;
    case CALLABLE:
      delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
      break;
    default:
      throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
  }

}

调用父类的准备方法去设置一些公共属性，并设置参数

  private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
    Statement stmt;
    Connection connection = getConnection(statementLog);
    stmt = handler.prepare(connection, transaction.getTimeout());
    handler.parameterize(stmt);
    return stmt;
  }

@Override
public Statement prepare(Connection connection, Integer transactionTimeout) throws SQLException {
  ErrorContext.instance().sql(boundSql.getSql());
  Statement statement = null;
  try {
    statement = instantiateStatement(connection);
    setStatementTimeout(statement, transactionTimeout);
    setFetchSize(statement);
    return statement;
  } catch (SQLException e) {
    closeStatement(statement);
    throw e;
  } catch (Exception e) {
    closeStatement(statement);
    throw new ExecutorException("Error preparing statement.  Cause: " + e, e);
  }
}
