mybaits源码-配置-默认配置

中文文档：https://mybatis.org/mybatis-3/zh/getting-started.html

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="config.properties">
        <!--        按需定义全局变量，以供整个配置文件使用-->
        <!--        <property name="globalVariable" value="value"/>-->
    </properties>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="${mysql.driver}"/>
                <property name="url" value="${mysql.url}"/>
                <property name="username" value="${mysql.username}"/>
                <property name="password" value="${mysql.password}"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <mapper resource="mapper/PersonMapper.xml"/>
    </mappers>
</configuration>

测试入口：

package com.laoxu.mybatis.executor;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

import java.io.IOException;
import java.io.InputStream;

public class start {

    public static void main(String[] args) throws IOException {
        // user.dir指定了当前的路径
        String userDir = System.getProperty("user.dir");
        System.out.println(userDir);
        // 获取类路径
        String classPath = start.class.getResource("/").getPath();
        System.out.println(classPath);
        // 根据当前类路径下的相对路径 (classPath + {path})
        String resource = "mapper/mybatis-config.xml";
        InputStream inputStream = Resources.getResourceAsStream(resource);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
    }

}

构建SqlSessionFactory工厂：入参（输入流）

/**
 *    Copyright 2009-2019 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.session;

import java.io.IOException;
import java.io.InputStream;
import java.io.Reader;
import java.util.Properties;

import org.apache.ibatis.builder.xml.XMLConfigBuilder;
import org.apache.ibatis.exceptions.ExceptionFactory;
import org.apache.ibatis.executor.ErrorContext;
import org.apache.ibatis.session.defaults.DefaultSqlSessionFactory;

/**
 * Builds {@link SqlSession} instances.
 *
 * @author Clinton Begin
 */
public class SqlSessionFactoryBuilder {

    // 构造1
    public SqlSessionFactory build(InputStream inputStream) {
        return build(inputStream, null, null);
    }

    // 构造2
    public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
        try {
            XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
            return build(parser.parse());
        } catch (Exception e) {
            throw ExceptionFactory.wrapException("Error building SqlSession.", e);
        } finally {
            ErrorContext.instance().reset();
            try {
                inputStream.close();
            } catch (IOException e) {
                // Intentionally ignore. Prefer previous error.
            }
        }
    }

    // 构造3
    public SqlSessionFactory build(Configuration config) {
        return new DefaultSqlSessionFactory(config);
    }

}

SqlSessionFactoryBuilder 构造2：

构造xml配置

XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);

/**
 *    Copyright 2009-2021 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.builder.xml;

import java.io.InputStream;
import java.io.Reader;
import java.util.Properties;

import javax.sql.DataSource;

import org.apache.ibatis.builder.BaseBuilder;
import org.apache.ibatis.builder.BuilderException;
import org.apache.ibatis.datasource.DataSourceFactory;
import org.apache.ibatis.executor.ErrorContext;
import org.apache.ibatis.executor.loader.ProxyFactory;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.io.VFS;
import org.apache.ibatis.logging.Log;
import org.apache.ibatis.mapping.DatabaseIdProvider;
import org.apache.ibatis.mapping.Environment;
import org.apache.ibatis.parsing.XNode;
import org.apache.ibatis.parsing.XPathParser;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.reflection.DefaultReflectorFactory;
import org.apache.ibatis.reflection.MetaClass;
import org.apache.ibatis.reflection.ReflectorFactory;
import org.apache.ibatis.reflection.factory.ObjectFactory;
import org.apache.ibatis.reflection.wrapper.ObjectWrapperFactory;
import org.apache.ibatis.session.AutoMappingBehavior;
import org.apache.ibatis.session.AutoMappingUnknownColumnBehavior;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ExecutorType;
import org.apache.ibatis.session.LocalCacheScope;
import org.apache.ibatis.transaction.TransactionFactory;
import org.apache.ibatis.type.JdbcType;

/**
 * @author Clinton Begin
 * @author Kazuki Shimizu
 */
public class XMLConfigBuilder extends BaseBuilder {

  private boolean parsed;
  private final XPathParser parser;
  private String environment;

  // 构造1
  public XMLConfigBuilder(InputStream inputStream, String environment, Properties props) {
    this(new XPathParser(inputStream, true, props, new XMLMapperEntityResolver()), environment, props);
  }
  // 构造2
  private XMLConfigBuilder(XPathParser parser, String environment, Properties props) {
    super(new Configuration());
    ErrorContext.instance().resource("SQL Mapper Configuration");
    this.configuration.setVariables(props);
    this.parsed = false;
    this.environment = environment;
    this.parser = parser;
  }



}

• XMLConfigBuilder 需要构造的实体类：

new XMLMapperEntityResolver()

new XPathParser(inputStream, true, props, new XMLMapperEntityResolver())

new Configuration()

解析开始：

1、实例化一个XML映射实体解析器

/**
 *    Copyright 2009-2020 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.builder.xml;

import java.io.IOException;
import java.io.InputStream;
import java.util.Locale;

import org.apache.ibatis.io.Resources;
import org.xml.sax.EntityResolver;
import org.xml.sax.InputSource;
import org.xml.sax.SAXException;

/**
 * MyBatis dtd的离线实体解析器。
 *
 * @author Clinton Begin
 * @author Eduardo Macarron
 */
public class XMLMapperEntityResolver implements EntityResolver {

  private static final String IBATIS_CONFIG_SYSTEM = "ibatis-3-config.dtd";
  private static final String IBATIS_MAPPER_SYSTEM = "ibatis-3-mapper.dtd";
  private static final String MYBATIS_CONFIG_SYSTEM = "mybatis-3-config.dtd";
  private static final String MYBATIS_MAPPER_SYSTEM = "mybatis-3-mapper.dtd";

  private static final String MYBATIS_CONFIG_DTD = "org/apache/ibatis/builder/xml/mybatis-3-config.dtd";
  private static final String MYBATIS_MAPPER_DTD = "org/apache/ibatis/builder/xml/mybatis-3-mapper.dtd";

  /**
   * 将公共DTD转换为本地DTD。
   *
   * @param publicId
   *          公共id，在" public "后面
   * @param systemId
   *          在公共id之后的系统id。
   * @return DTD的InputSource
   *
   * @throws org.xml.sax.SAXException
   *           如果出了什么差错
   */
  @Override
  public InputSource resolveEntity(String publicId, String systemId) throws SAXException {
    // 去读取mybatis-config.xml头标签<!DOCTYPE configuration ...param>的两个参数
    try {
      if (systemId != null) {
        // 系统id小写处理
        String lowerCaseSystemId = systemId.toLowerCase(Locale.ENGLISH);
        if (lowerCaseSystemId.contains(MYBATIS_CONFIG_SYSTEM) ||
                lowerCaseSystemId.contains(IBATIS_CONFIG_SYSTEM)) {
          // 如果系统id包含 系统配置 标识
          return getInputSource(MYBATIS_CONFIG_DTD, publicId, systemId);
        } else if (lowerCaseSystemId.contains(MYBATIS_MAPPER_SYSTEM) ||
                lowerCaseSystemId.contains(IBATIS_MAPPER_SYSTEM)) {
          // 如果系统id包含 映射系统 标识
          return getInputSource(MYBATIS_MAPPER_DTD, publicId, systemId);
        }
      }
      return null;
    } catch (Exception e) {
      throw new SAXException(e.toString());
    }
  }

  /**
   * 获取输入源
   * @param path 路径
   * @param publicId 公共id
   * @param systemId 系统Id
   * @return
   */
  private InputSource getInputSource(String path, String publicId, String systemId) {
    InputSource source = null;
    if (path != null) {
      try {
        // 去类路径获取输入流
        InputStream in = Resources.getResourceAsStream(path);
        source = new InputSource(in);
        source.setPublicId(publicId);
        source.setSystemId(systemId);
      } catch (IOException e) {
        // 忽略，null也可以
      }
    }
    return source;
  }

}

2、实例化XPathParser解析器

/**
 *    Copyright 2009-2019 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.parsing;

import java.io.InputStream;
import java.io.Reader;
import java.io.StringReader;
import java.util.ArrayList;
import java.util.List;
import java.util.Properties;

import javax.xml.XMLConstants;
import javax.xml.namespace.QName;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.xpath.XPath;
import javax.xml.xpath.XPathConstants;
import javax.xml.xpath.XPathFactory;

import org.apache.ibatis.builder.BuilderException;
import org.w3c.dom.Document;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;
import org.xml.sax.EntityResolver;
import org.xml.sax.ErrorHandler;
import org.xml.sax.InputSource;
import org.xml.sax.SAXException;
import org.xml.sax.SAXParseException;

/**
 * @author Clinton Begin
 * @author Kazuki Shimizu
 */
public class XPathParser {

  private final Document document;
  private boolean validation;
  private EntityResolver entityResolver;
  private Properties variables;
  private XPath xpath;

  public XPathParser(InputStream inputStream, boolean validation, Properties variables, EntityResolver entityResolver) {
    commonConstructor(validation, variables, entityResolver);
    this.document = createDocument(new InputSource(inputStream));
  }

  private Document createDocument(InputSource inputSource) {
    // 重要提示:这个函数只能在通用构造函数之后调用
    try {
      //创建DocumentBuilderFactory实例对象
      DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
      /**
       * 设置是否启用DTD验证
       */
      factory.setValidating(validation);
      /**
       * 设置是否支持XML名称空间
       */
      factory.setNamespaceAware(false);
      /**
       * 设置解析器是否忽略注释
       */
      factory.setIgnoringComments(true);
      /**
       * 设置必须删除元素内容中的空格（有时也可以称作“可忽略空格”，请参阅 XML Rec 2.10）。
       * 注意，只有在空格直接包含在元素内容中，并且该元素内容是只有一个元素的内容模式时，
       * 才能删除空格（请参阅 XML Rec 3.2.1）。由于依赖于内容模式，因此此设置要求解析器处于验证模式。默认情况下，其值设置为 false。
       */
      factory.setIgnoringElementContentWhitespace(false);
      /**
       * 指定由此代码生成的解析器将把 CDATA 节点转换为 Text 节点，并将其附加到相邻（如果有）的 Text 节点。默认情况下，其值设置为 false。
       */
      factory.setCoalescing(false);
      /**
       * 指定由此代码生成的解析器将扩展实体引用节点。默认情况下，此值设置为 true。
       */
      factory.setExpandEntityReferences(true);
      //创建DocumentBuilder实例对象
      DocumentBuilder builder = factory.newDocumentBuilder();
      //指定使用 EntityResolver 解析要解析的 XML 文档中存在的实体。将其设置为 null 将会导致底层实现使用其自身的默认实现和行为。
      builder.setEntityResolver(entityResolver);
      //指定解析器要使用的 ErrorHandler。将其设置为 null 将会导致底层实现使用其自身的默认实现和行为。
      builder.setErrorHandler(new ErrorHandler() {
        @Override
        public void error(SAXParseException exception) throws SAXException {
          throw exception;
        }

        @Override
        public void fatalError(SAXParseException exception) throws SAXException {
          throw exception;
        }

        @Override
        public void warning(SAXParseException exception) throws SAXException {
          // NOP
        }
      });
      return builder.parse(inputSource);
    } catch (Exception e) {
      throw new BuilderException("Error creating document instance.  Cause: " + e, e);
    }
  }

  private void commonConstructor(boolean validation, Properties variables, EntityResolver entityResolver) {
    this.validation = validation;
    this.entityResolver = entityResolver;
    this.variables = variables;
    XPathFactory factory = XPathFactory.newInstance();
    this.xpath = factory.newXPath();
  }

}

3、实例化Configuration核心配置类

主要作用：注册工厂及驱动，并设置别名

public Configuration() {
  typeAliasRegistry.registerAlias("JDBC", JdbcTransactionFactory.class);
  typeAliasRegistry.registerAlias("MANAGED", ManagedTransactionFactory.class);

  typeAliasRegistry.registerAlias("JNDI", JndiDataSourceFactory.class);
  typeAliasRegistry.registerAlias("POOLED", PooledDataSourceFactory.class);
  typeAliasRegistry.registerAlias("UNPOOLED", UnpooledDataSourceFactory.class);

  typeAliasRegistry.registerAlias("PERPETUAL", PerpetualCache.class);
  typeAliasRegistry.registerAlias("FIFO", FifoCache.class);
  typeAliasRegistry.registerAlias("LRU", LruCache.class);
  typeAliasRegistry.registerAlias("SOFT", SoftCache.class);
  typeAliasRegistry.registerAlias("WEAK", WeakCache.class);

  typeAliasRegistry.registerAlias("DB_VENDOR", VendorDatabaseIdProvider.class);

  typeAliasRegistry.registerAlias("XML", XMLLanguageDriver.class);
  typeAliasRegistry.registerAlias("RAW", RawLanguageDriver.class);

  typeAliasRegistry.registerAlias("SLF4J", Slf4jImpl.class);
  typeAliasRegistry.registerAlias("COMMONS_LOGGING", JakartaCommonsLoggingImpl.class);
  typeAliasRegistry.registerAlias("LOG4J", Log4jImpl.class);
  typeAliasRegistry.registerAlias("LOG4J2", Log4j2Impl.class);
  typeAliasRegistry.registerAlias("JDK_LOGGING", Jdk14LoggingImpl.class);
  typeAliasRegistry.registerAlias("STDOUT_LOGGING", StdOutImpl.class);
  typeAliasRegistry.registerAlias("NO_LOGGING", NoLoggingImpl.class);

  typeAliasRegistry.registerAlias("CGLIB", CglibProxyFactory.class);
  typeAliasRegistry.registerAlias("JAVASSIST", JavassistProxyFactory.class);

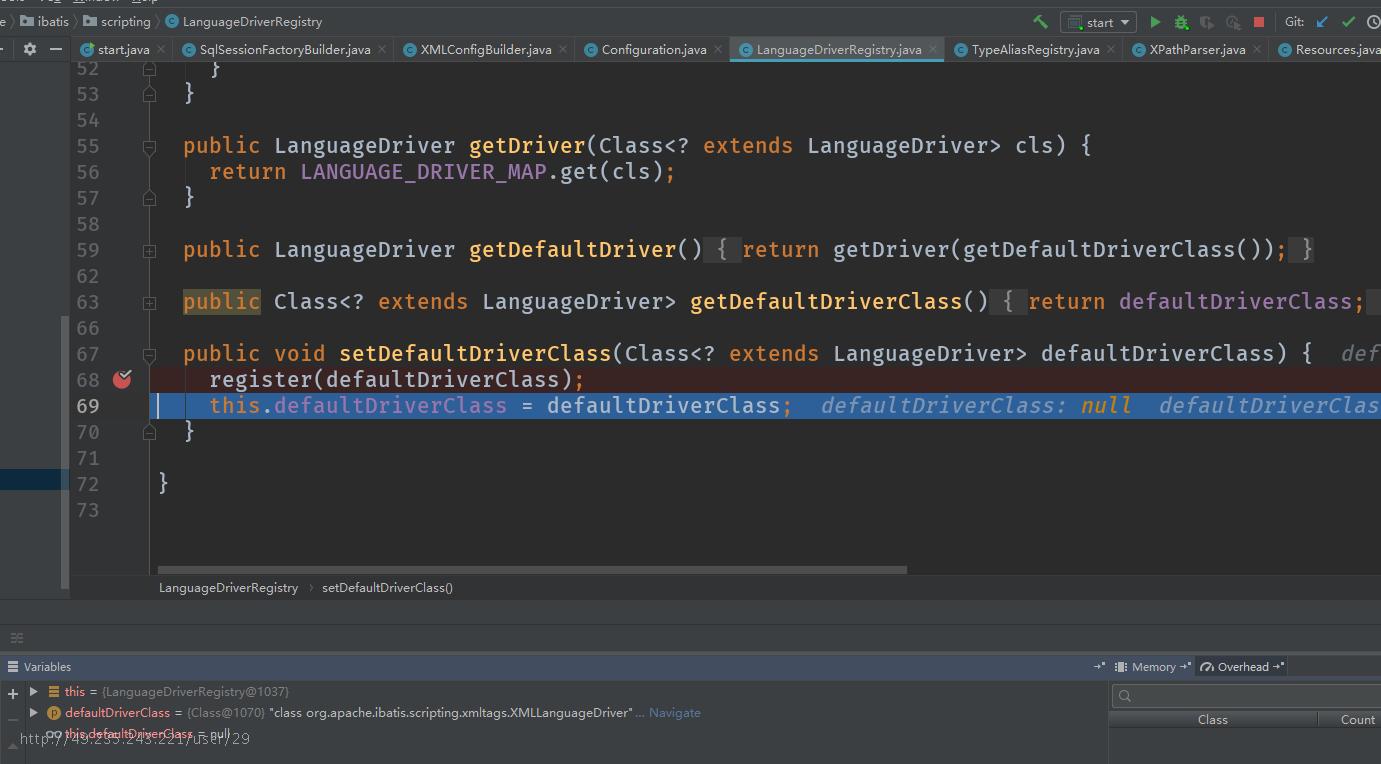

  languageRegistry.setDefaultDriverClass(XMLLanguageDriver.class);
  languageRegistry.register(RawLanguageDriver.class);
}

private final Map<String, Class<?>> typeAliases = new HashMap<>();

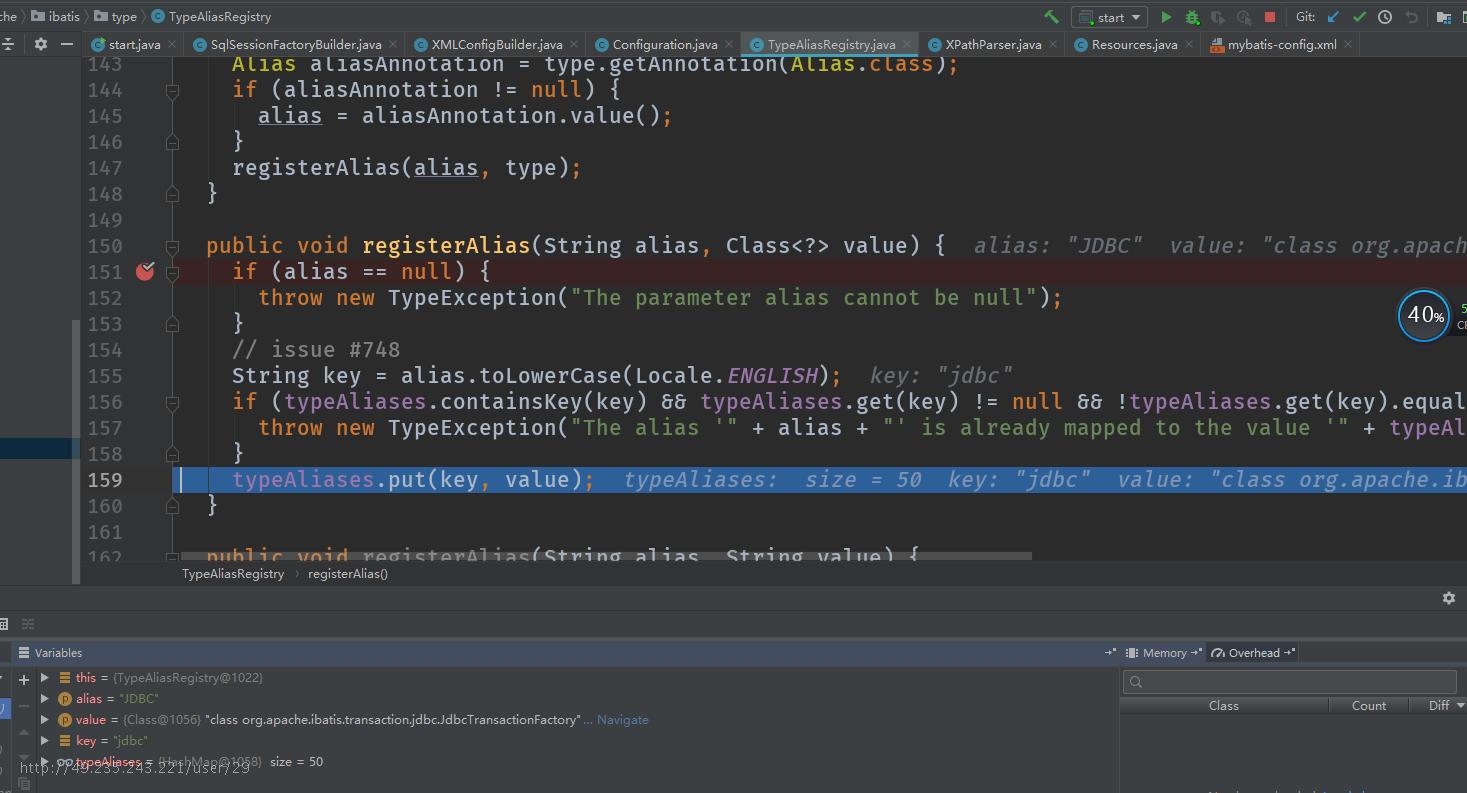

对alias进行小写化，将别名作为key，class作为value存入typeAliases这个map中

private final Map<Class<? extends LanguageDriver>, LanguageDriver> LANGUAGE_DRIVER_MAP = new HashMap<>();

public void register(Class<? extends LanguageDriver> cls) {
  if (cls == null) {
    throw new IllegalArgumentException("null is not a valid Language Driver");
  }
  MapUtil.computeIfAbsent(LANGUAGE_DRIVER_MAP, cls, k -> {
    try {
      return k.getDeclaredConstructor().newInstance();
    } catch (Exception ex) {
      throw new ScriptingException("Failed to load language driver for " + cls.getName(), ex);
    }
  });
}

MapUtil.computeIfAbsent静态方法

public static <K, V> V computeIfAbsent(Map<K, V> map, K key, Function<K, V> mappingFunction) {
  V value = map.get(key);
  if (value != null) {
    return value;
  }
  return map.computeIfAbsent(key, mappingFunction::apply);
}

对传入的map进行判断，判断传入的key是否存在于map中，如果存在直接返回；如果不存在，那么就计算后返回------mappingFunction代表我们自定义的函数，如果该函数返回不为空那么就put(key, 函数返回的值)，否则不对map进行操作。

4、错误上下文进行赋值

主要作用：对当前线程的 ErrorContext 类的 resource 属性进行赋值

ErrorContext.instance().resource("SQL Mapper Configuration");

/**
 *    Copyright 2009-2020 the original author or authors.
 *
 *    Licensed under the Apache License, Version 2.0 (the "License");
 *    you may not use this file except in compliance with the License.
 *    You may obtain a copy of the License at
 *
 *       http://www.apache.org/licenses/LICENSE-2.0
 *
 *    Unless required by applicable law or agreed to in writing, software
 *    distributed under the License is distributed on an "AS IS" BASIS,
 *    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 *    See the License for the specific language governing permissions and
 *    limitations under the License.
 */
package org.apache.ibatis.executor;

/**
 * @author Clinton Begin
 */
public class ErrorContext {

  private static final String LINE_SEPARATOR = System.lineSeparator();
  private static final ThreadLocal<ErrorContext> LOCAL = ThreadLocal.withInitial(ErrorContext::new);

  private ErrorContext stored;
  private String resource;
  private String activity;
  private String object;
  private String message;
  private String sql;
  private Throwable cause;

  private ErrorContext() {
  }

  public static ErrorContext instance() {
    return LOCAL.get();
  }



  public ErrorContext resource(String resource) {
    this.resource = resource;
    return this;
  }


  public ErrorContext reset() {
    resource = null;
    activity = null;
    object = null;
    message = null;
    sql = null;
    cause = null;
    LOCAL.remove();
    return this;
  }


}

5、parser.json

6、解析environments标签

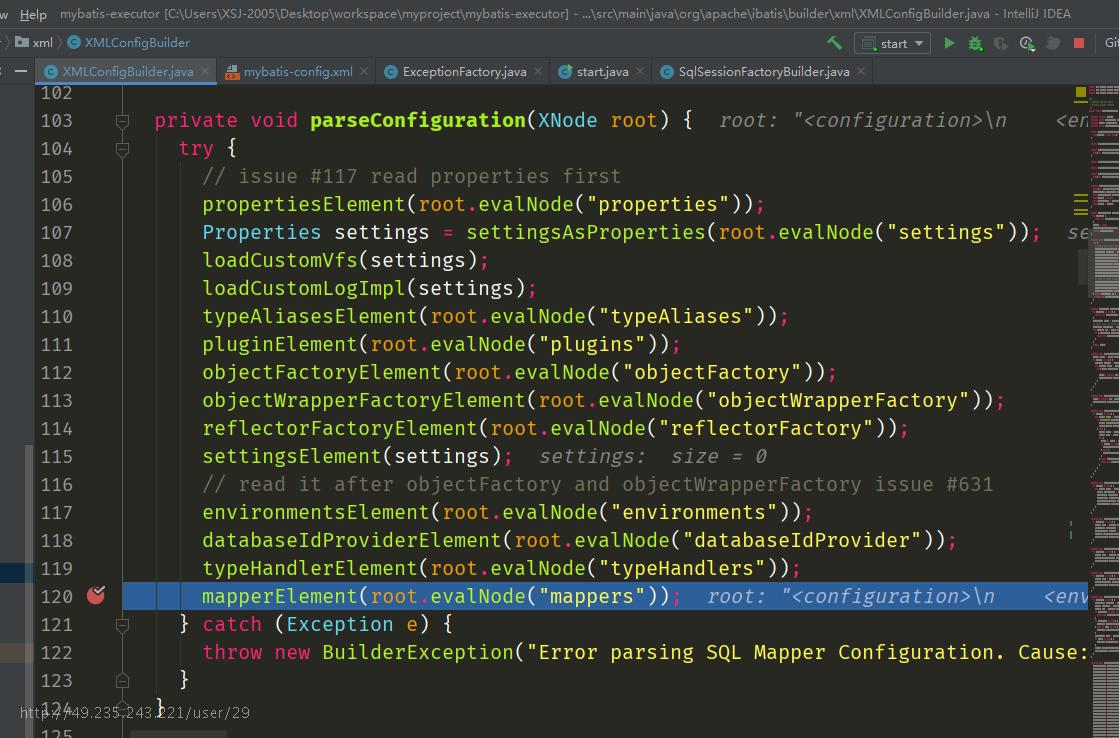

6、解析mappers标签
