SpringCloud 实战二十四：Stream消息驱动

生产者：cloud-stream-rabbitmq-provider8801

1、引入依赖：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.laoxu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-stream-rabbitmq-provider8801</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.laoxu.springcloud</groupId>
            <artifactId>cloud-api-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

2、配置端口

server:
  port: 8801



spring:
  application:
    name: cloud-stream-provider
  cloud:
      stream:
        binders:
          defaultRabbit:
            type: rabbit
            environment:
              spring:
                rabbitmq:
                  host: 47.56.236.87
                  port: 5672
                  username: admin
                  password: admin
        bindings:
          output:
            destination: studyExchange
            content-type: applicaion/json
            binder: defaultRabbit

eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka, http://eureka7002.com:7002/eureka

3、启动类

package com.laoxu.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class StreamMQMain8801 {
    public static void main(String[] args) {
        SpringApplication.run(StreamMQMain8801.class, args);
    }
}

4、创建消息发送接口

package com.laoxu.springcloud.service;

public interface IMessageProvider {
    String send();
}

package com.laoxu.springcloud.service.Impl;

import com.laoxu.springcloud.service.IMessageProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.messaging.Source;
import org.springframework.integration.support.MessageBuilder;
import org.springframework.messaging.MessageChannel;


import java.util.UUID;

@EnableBinding(Source.class)  // 定义消息的推送管道
public class MessageProviderImpl implements IMessageProvider {

    @Autowired
    private MessageChannel output; //消息发送管道

    public String send() {
        String serial = UUID.randomUUID().toString();
        output.send(MessageBuilder.withPayload(serial).build());
        System.out.println("******serial " + serial);
        return null;
    }
}

5、控制器测试

package com.laoxu.springcloud.controller;

import com.laoxu.springcloud.service.IMessageProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class SendMessageController {

    @Autowired
    private IMessageProvider messageProvider;

    @GetMapping("/sendMessage")
    public String sendMessage(){
        return messageProvider.send();
    }
}

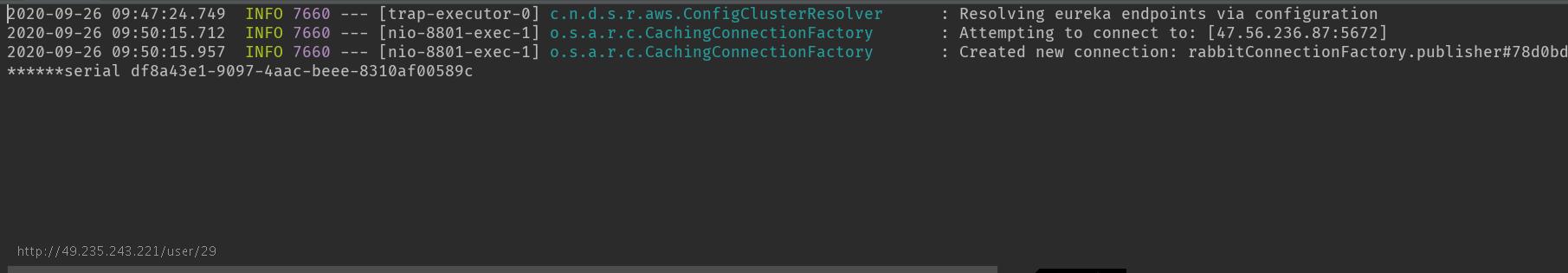

6、访问：http://localhost:8801/sendMessage

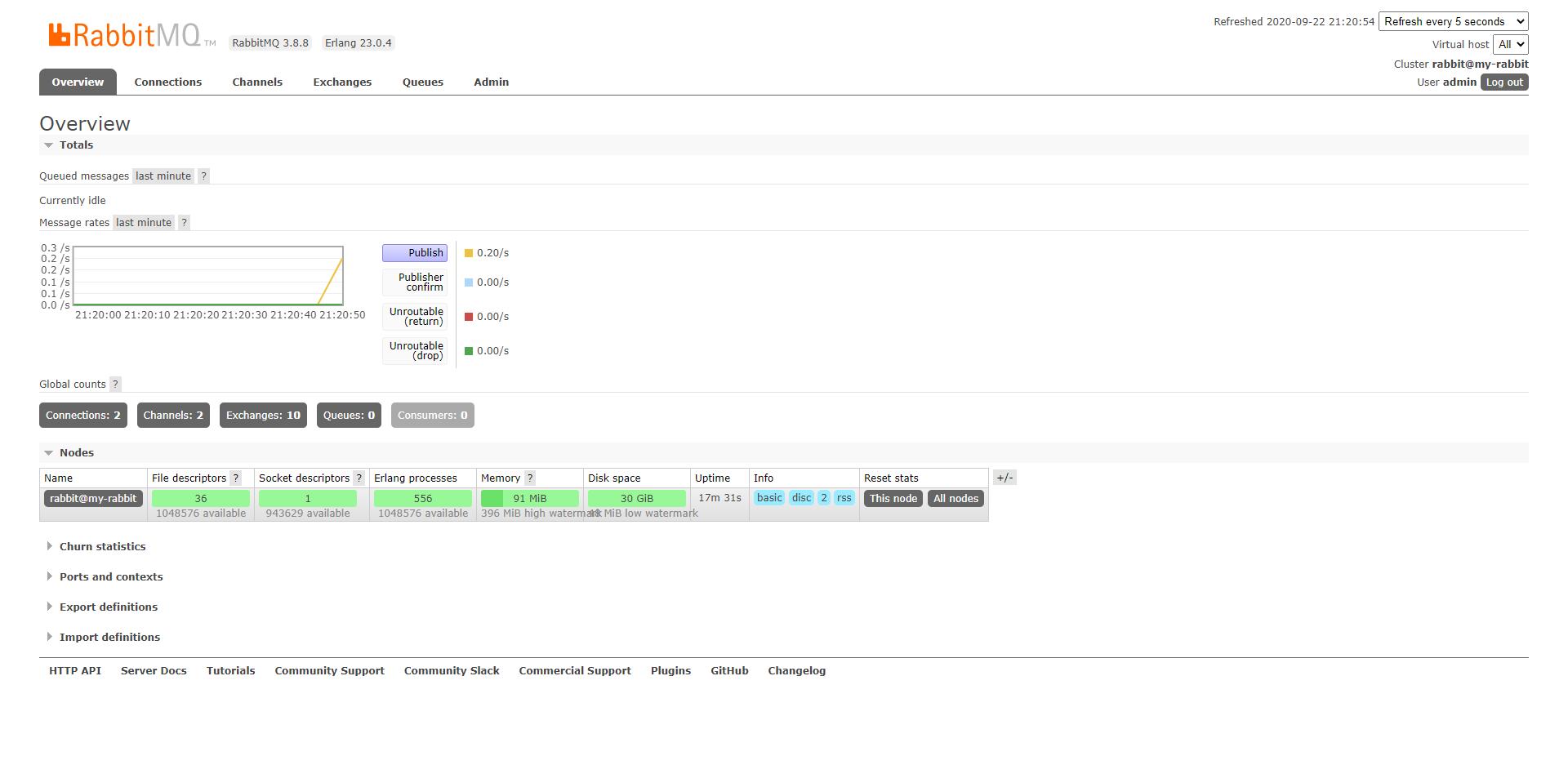

可以看到发送消息到rabbitmq成功

消费者：cloud-stream-rabbitmq-consumer8802

1、引入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud2020</artifactId>
        <groupId>com.laoxu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-stream-rabbitmq-consumer8802</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-rabbit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.laoxu.springcloud</groupId>
            <artifactId>cloud-api-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

2、配置端口

server:
  port: 8802



spring:
  application:
    name: cloud-stream-consumer

  cloud:
    stream:
      binders:
        defaultRabbit:
          type: rabbit
          environment:
            spring:
              rabbitmq:
                host: 47.56.236.87
                port: 5672
                username: admin
                password: admin
      bindings:
        input:
          destination: studyExchange
          content-type: application/json
          binder: defaultRabbit


eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka, http://eureka7002.com:7002/eureka

3、编写业务类接收消息生产者发送的消息

package com.laoxu.springcloud.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.stream.annotation.EnableBinding;
import org.springframework.cloud.stream.annotation.StreamListener;
import org.springframework.cloud.stream.messaging.Sink;
import org.springframework.messaging.Message;
import org.springframework.stereotype.Component;

@Component
@EnableBinding(Sink.class)
public class ReceiveMessageListenerController {
    @Value("${server.port}")
    private String serverPort;

    @StreamListener(Sink.INPUT)
    public void input(Message<String> message){
        System.out.println("消费者1号，------>接收到消息：" + message.getPayload() + "\t" + "port: "+serverPort);
    }

}

4、启动服务

5、访问：http://localhost:8801/sendMessage

可以在8802消费者端看到日志输出！
