0、准备

使用docker安装zookeeper

参照随笔：https://www.aimaboge.com/note/26

zookeeper端口号为2181

一、生产者（dubbo-server）

1、引入dubbo依赖

<!-- Spring Boot Dubbo 依赖 -->
<dependency>
    <groupId>io.dubbo.springboot</groupId>
    <artifactId>spring-boot-starter-dubbo</artifactId>
    <version>1.0.0</version>
</dependency>
<dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
</dependency>

2、配置application.properties

连接到远程zookeeper，注册为生产者

## Dubbo 服务提供者配置
spring.dubbo.application.name=provider
spring.dubbo.registry.address=zookeeper://106.54.196.44:2181
spring.dubbo.protocol.name=dubbo
spring.dubbo.protocol.port=20880
spring.dubbo.scan=com.laoxu.dubbo.service

spring.dubbo.scan 指定远程服务调用位置（生产者的service接口所在路径）

3、创建服务

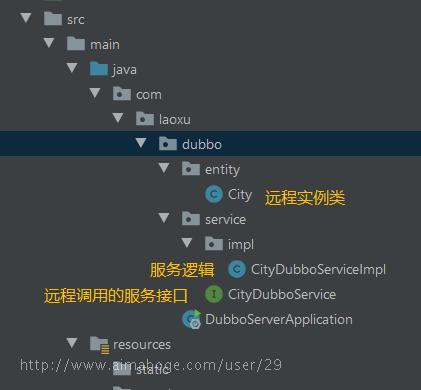

项目结构

城市实体类

package com.laoxu.dubbo.entity;

import java.io.Serializable;

/**
 * 城市实体类
 *
 * Created by bysocket on 07/02/2017.
 */
public class City implements Serializable {

    private static final long serialVersionUID = -1L;

    /**
     * 城市编号
     */
    private Long id;

    /**
     * 省份编号
     */
    private Long provinceId;

    /**
     * 城市名称
     */
    private String cityName;

    /**
     * 描述
     */
    private String description;

    public City() {
    }

    public City(Long id, Long provinceId, String cityName, String description) {
        this.id = id;
        this.provinceId = provinceId;
        this.cityName = cityName;
        this.description = description;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public Long getProvinceId() {
        return provinceId;
    }

    public void setProvinceId(Long provinceId) {
        this.provinceId = provinceId;
    }

    public String getCityName() {
        return cityName;
    }

    public void setCityName(String cityName) {
        this.cityName = cityName;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }
}

远程调用服务接口

package com.laoxu.dubbo.service;

import com.laoxu.dubbo.entity.City;

public interface CityDubboService {

    City findCityByName(String cityName);
}

服务逻辑

package com.laoxu.dubbo.service.impl;


import com.alibaba.dubbo.config.annotation.Service;
import com.laoxu.dubbo.entity.City;
import com.laoxu.dubbo.service.CityDubboService;


@Service(version = "1.0.0")
public class CityDubboServiceImpl implements CityDubboService {
    @Override
    public City findCityByName(String cityName) {
        return new City(1L,2L,cityName,"是我的故乡");
    }
}

代码说明：

@Service 这里须使用dubbo的service注解，用于暴露服务，参数version指定对应版本
主要模拟了根据名字查找城市业务

二、消费者（dubbo-client）

1、引入dubbo依赖

<!-- Spring Boot Dubbo 依赖 -->
<dependency>
    <groupId>io.dubbo.springboot</groupId>
    <artifactId>spring-boot-starter-dubbo</artifactId>
    <version>1.0.0</version>
</dependency>
<dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
</dependency>

2、配置application.properties

连接远程zookeeper，注册为消费者


## 避免和 server 工程端口冲突
server.port=8081

## Dubbo 服务消费者配置
spring.dubbo.application.name=consumer
spring.dubbo.registry.address=zookeeper://106.54.196.44:2181
spring.dubbo.scan=com.laoxu.dubbo.service

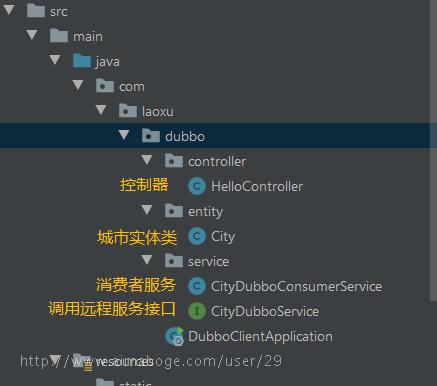

3、项目结构

城市实体类

package com.laoxu.dubbo.entity;

import java.io.Serializable;

/**
 * 城市实体类
 *
 * Created by bysocket on 07/02/2017.
 */
public class City implements Serializable {

    private static final long serialVersionUID = -1L;

    /**
     * 城市编号
     */
    private Long id;

    /**
     * 省份编号
     */
    private Long provinceId;

    /**
     * 城市名称
     */
    private String cityName;

    /**
     * 描述
     */
    private String description;

    public City() {
    }

    public City(Long id, Long provinceId, String cityName, String description) {
        this.id = id;
        this.provinceId = provinceId;
        this.cityName = cityName;
        this.description = description;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public Long getProvinceId() {
        return provinceId;
    }

    public void setProvinceId(Long provinceId) {
        this.provinceId = provinceId;
    }

    public String getCityName() {
        return cityName;
    }

    public void setCityName(String cityName) {
        this.cityName = cityName;
    }

    public String getDescription() {
        return description;
    }

    public void setDescription(String description) {
        this.description = description;
    }
}

调用远程服务接口

接口名字、方法名、所在包都须和远程服务相同

package com.laoxu.dubbo.service;

import com.laoxu.dubbo.entity.City;

public interface CityDubboService {

    City findCityByName(String cityName);

}

消费者服务根据远程的version找到对应的生产者

package com.laoxu.dubbo.service;

import com.alibaba.dubbo.config.annotation.Reference;
import com.laoxu.dubbo.entity.City;
import org.springframework.stereotype.Component;

/**
 * 城市 Dubbo 服务消费者
 *
 * Created by bysocket on 28/02/2017.
 */
@Component
public class CityDubboConsumerService {

    @Reference(version = "1.0.0")
    CityDubboService cityDubboService;

    public City findCityByName(String cityName) {
        return cityDubboService.findCityByName(cityName);
    }
}

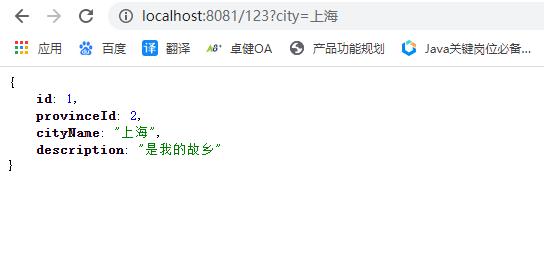

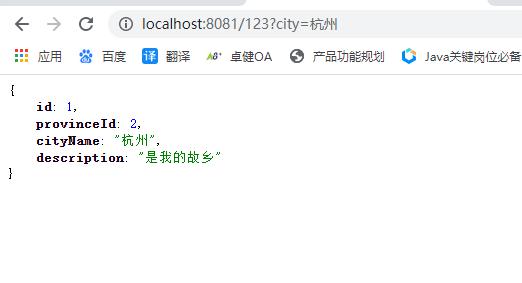

4、控制器测试

package com.laoxu.dubbo.controller;

import com.laoxu.dubbo.entity.City;
import com.laoxu.dubbo.service.CityDubboConsumerService;
import com.laoxu.dubbo.service.CityDubboService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class HelloController {

    @Autowired
    private CityDubboConsumerService cityDubboConsumerService;

    @GetMapping("/123")
    @ResponseBody
    public City hello(@RequestParam("city") String cityName){
        return cityDubboConsumerService.findCityByName(cityName);
    }


}
