spring boot 整合 RabbitMQ 测试

0、准备

保证本地RabbitMQ服务已经启动

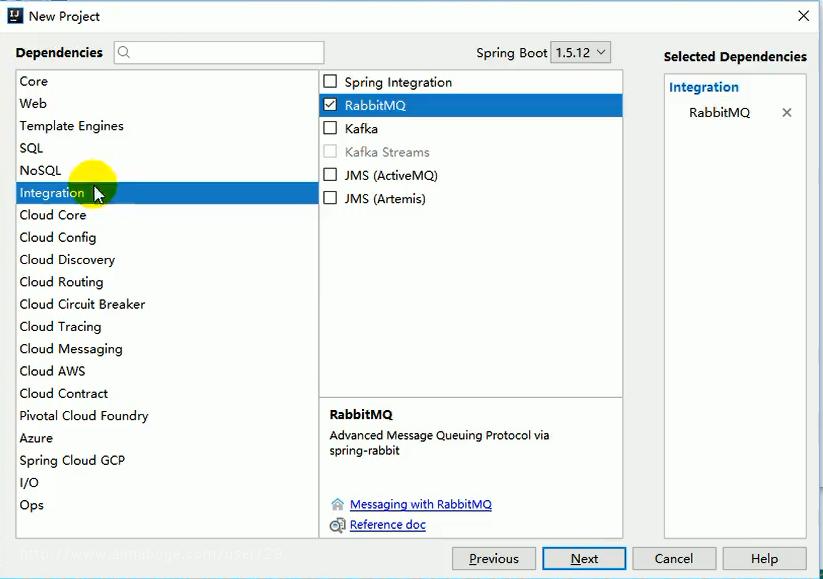

创建项目，使用spring初始化器添加RabbitMQ依赖

1、配置rabbitmq登录信息

配置文件：applicationn.properties

spring.rabbitmq.host=localhost

spring.rabbitmq.username=guest

spring.rabbitmq.password=guest

2、发送数据给rabbitmq

1) 点对点

发送数据

package com.laoxu.amqp;

import org.junit.jupiter.api.Test;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   RabbitTemplate rabbitTemplate;

   /**
    * 1、单播(点对点)
    */
   @Test
   void contextLoads() {
      Map<String,Object> map = new HashMap<>();
      map.put("msg","第一个消息");
      map.put("data", Arrays.asList("helloword",123,true));
      rabbitTemplate.convertAndSend("exchange.direct","laoxu",map);
   }

}

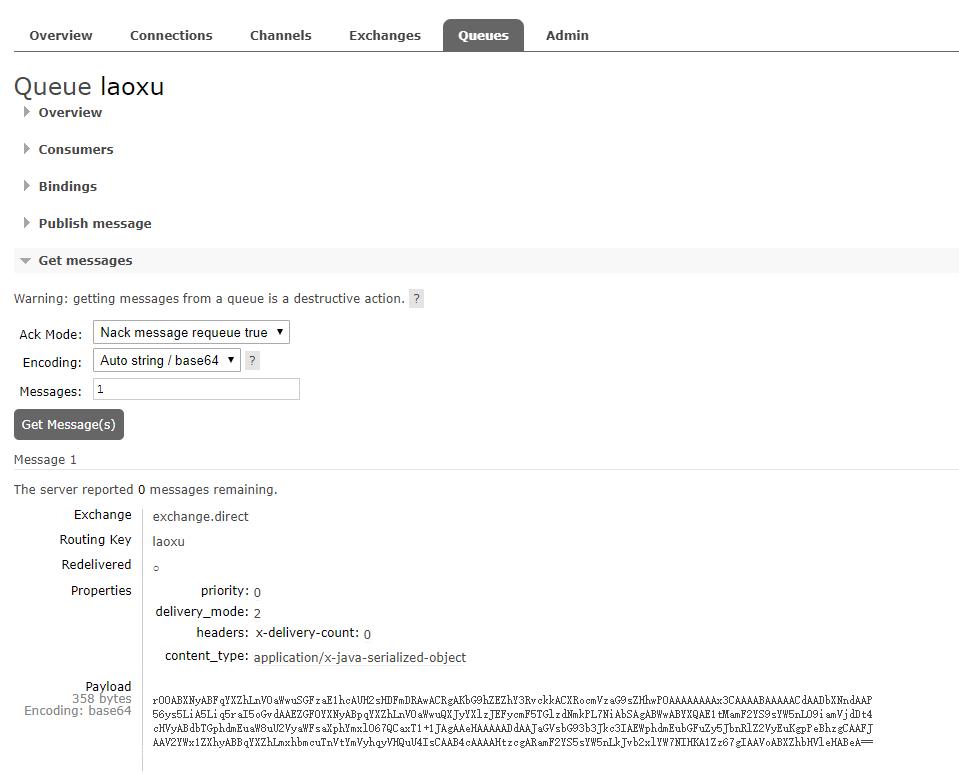

rabbitmq管理端查看获取到的消息

获取数据

package com.laoxu.amqp;

import org.junit.jupiter.api.Test;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   RabbitTemplate rabbitTemplate;

   /**
    * 1、单播(点对点)
    */
   @Test
   void contextLoads() {
      Map<String,Object> map = new HashMap<>();
      map.put("msg","第一个消息");
      map.put("data", Arrays.asList("helloword",123,true));
      rabbitTemplate.convertAndSend("exchange.direct","laoxu",map);
   }
   @Test
   void receive(){
      Object o = rabbitTemplate.receiveAndConvert("laoxu");
      System.out.println(o.getClass());
      System.out.println(o);
   }
}

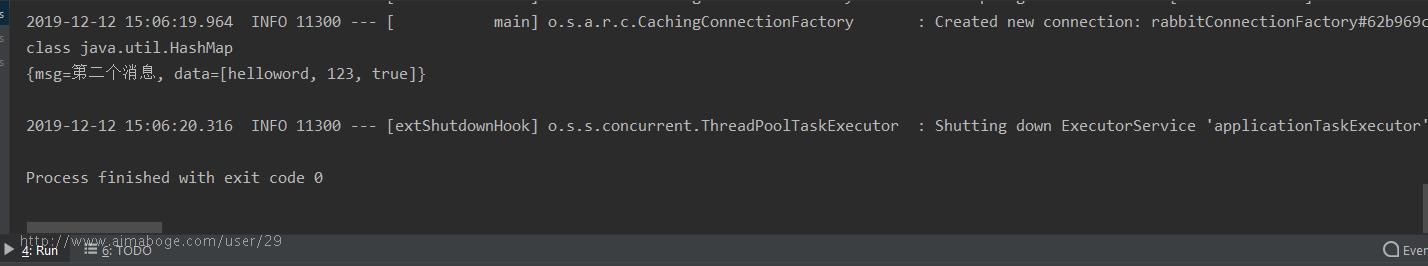

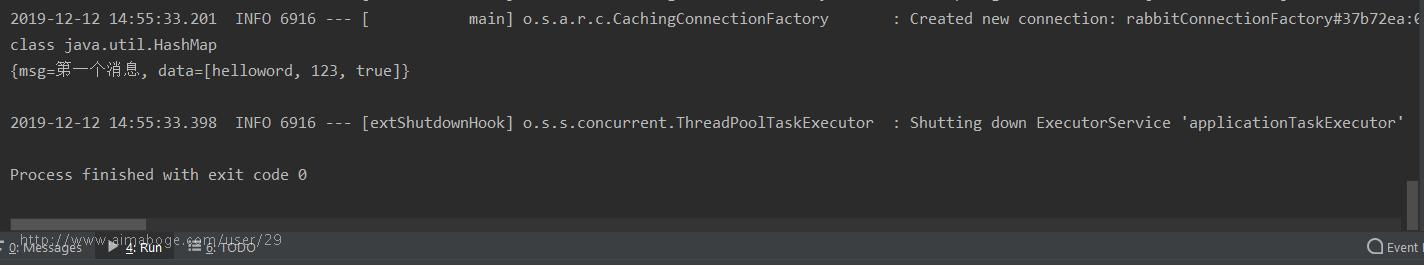

控制台

将发送的数据序列化成json格式

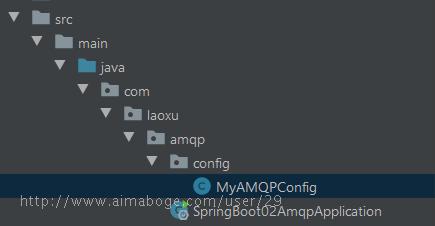

创建配置类

package com.laoxu.amqp.config;

import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.amqp.support.converter.MessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 *  rabbitmq 序列化转为json格式
 */
@Configuration
public class MyAMQPConfig {

    @Bean
    public MessageConverter messageConverter(){
        return new Jackson2JsonMessageConverter();
    }

}

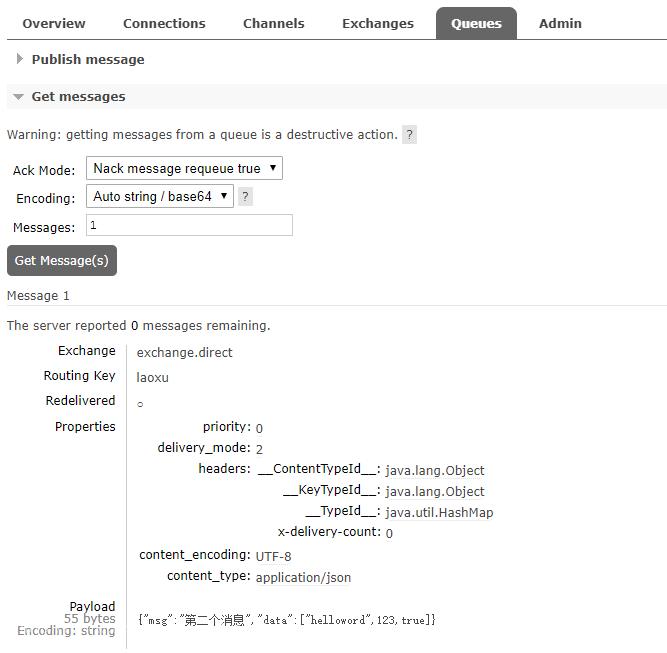

获取消息测试

控制台

3、测试自定义Bean的获取

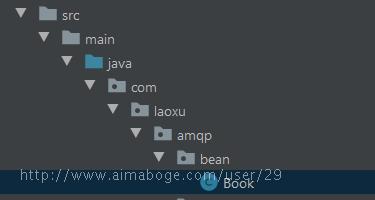

创建Book类

package com.laoxu.amqp.bean;

public class Book {
    private String bookName;
    private String author;

    public Book() {
    }

    public Book(String bookName, String author) {
        this.bookName = bookName;
        this.author = author;
    }

    public String getBookName() {
        return bookName;
    }

    public void setBookName(String bookName) {
        this.bookName = bookName;
    }

    public String getAuthor() {
        return author;
    }

    public void setAuthor(String author) {
        this.author = author;
    }
}

测试发送Book对象

package com.laoxu.amqp;

import com.laoxu.amqp.bean.Book;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   RabbitTemplate rabbitTemplate;

   /**
    * 1、单播(点对点)
    */
   @Test
   void contextLoads() {
      Map<String,Object> map = new HashMap<>();
      map.put("msg","第二个消息");
      map.put("data", Arrays.asList("helloword",123,true));
      rabbitTemplate.convertAndSend("exchange.direct","laoxu",new Book("西游记","罗贯中"));
   }
   @Test
   void receive(){
      Object o = rabbitTemplate.receiveAndConvert("laoxu");
      System.out.println(o.getClass());
      System.out.println(o);
   }
}

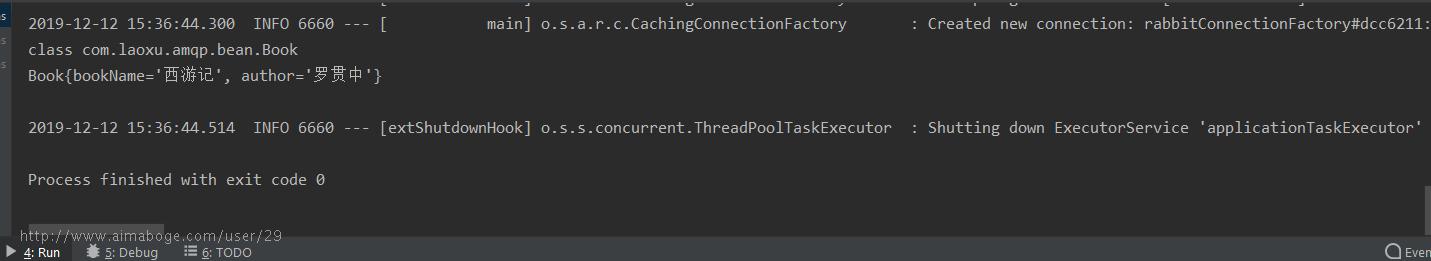

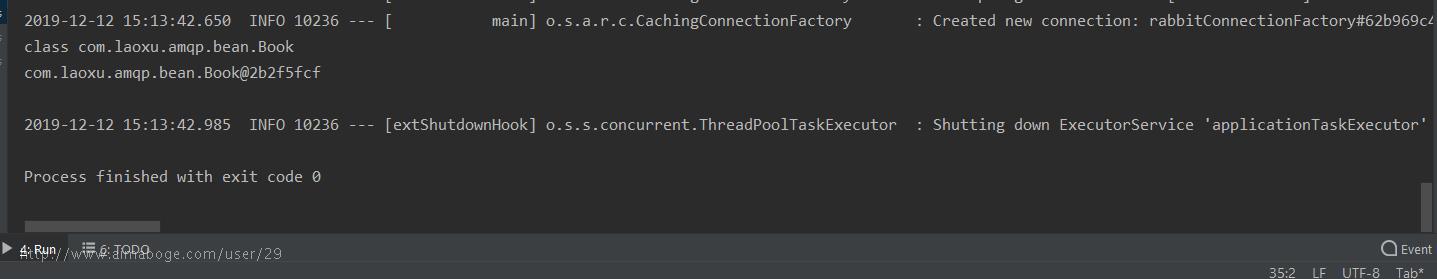

获取Book对象

获取对象内容则须重写toString()方法

package com.laoxu.amqp.bean;

public class Book {
    private String bookName;
    private String author;

    public Book() {
    }

    public Book(String bookName, String author) {
        this.bookName = bookName;
        this.author = author;
    }

    public String getBookName() {
        return bookName;
    }

    public void setBookName(String bookName) {
        this.bookName = bookName;
    }

    public String getAuthor() {
        return author;
    }

    public void setAuthor(String author) {
        this.author = author;
    }

    @Override
    public String toString() {
        return "Book{" +
                "bookName='" + bookName + '\'' +
                ", author='" + author + '\'' +
                '}';
    }
}

2) 广播

@Test
void sendMessage(){
   rabbitTemplate.convertAndSend("exchange.fanout","", new Book("三国","罗贯中"));
}

所有队列都接收到消息

java调用api创建交换器exchange

package com.laoxu.amqp;

import com.laoxu.amqp.bean.Book;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.core.AmqpAdmin;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   AmqpAdmin amqpAdmin;

   @Test
   void createExchange(){
      amqpAdmin.declareExchange(new DirectExchange("amqpAdmin.exchange"));
   }


}

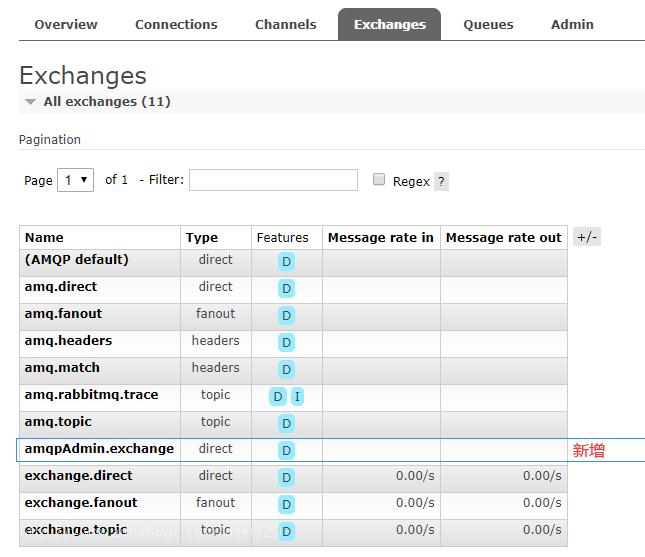

执行后，查看web管理端

java调用api创建队列

package com.laoxu.amqp;

import com.laoxu.amqp.bean.Book;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.core.AmqpAdmin;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   AmqpAdmin amqpAdmin;


   @Test
   void createQueue(){
      amqpAdmin.declareQueue(new Queue("amqpAdmin.queue"));
   }


}

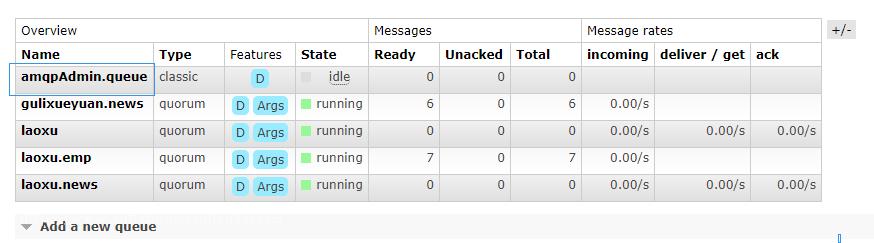

执行后查看web管理端

java调用api绑定队列到交换器

package com.laoxu.amqp;

import com.laoxu.amqp.bean.Book;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.core.AmqpAdmin;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

@SpringBootTest
class SpringBoot02AmqpApplicationTests {

   @Autowired
   AmqpAdmin amqpAdmin;

   @Test
   void bindExchangeWithQueue(){
      amqpAdmin.declareBinding(
            new Binding(
                  "amqpAdmin.queue",
                  Binding.DestinationType.QUEUE,
                  "amqpAdmin.exchange",
                  "amqp.haha",
                  null
            )
      );
   }


}

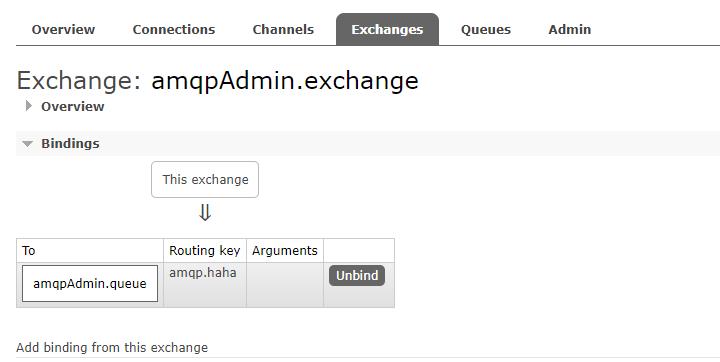

执行后查看web管理端
